Product Description

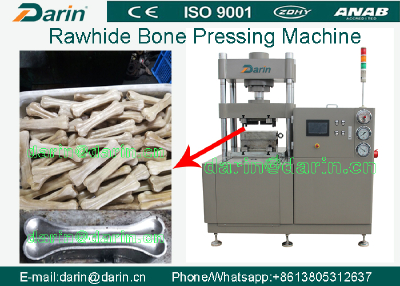

Rawhide Dog Chew Making Machine could produce pet chewing bone with cowhide, pigskin or sheepskin as material. It could press the material to be various shapes and sizes.
Features
1. This Dog Chew Bone Machine is type of Flour Column and Three Board, the up-most output tonnage is 20t.
2. It can be adjusted among the range of 5t-20t according to the different products’ procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).
3. The dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our DR-200 Punching Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.
4. Dog Chew Bone Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.
Technical Parameters
Project | DR-20T |
Liquid Pressure of Work (MPa) | 14-21 |
Theory Output (Ton) | 5-20 |
Working surface size (mm) | Left and Right 500 |
Working surface size (mm) | |
Front and Back 400 | |
Height of Working Table Off the Ground(MM) | 780 |
Biggest Operational Height(mm) | 400 |
Close(mm) | 200 |
Cylinder Stroke(mm) | 200 |
Motor Power | 5.5KW |
Structural Style | Flour Column Three Board |
Above Oil Cylinder | |
Power source | 380VAC,50/60Hz |
Weight | 1108kg |
Dimension | 600*500*1780mm |
Commissioning & After-sales Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 5-7 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.
